DD Fender

DD Fender

DD_fender

Standardgrößen DD Fender
A (mm)
B (mm)
C (mm)
D (mm)
Weight (kg/m)
422727131
506020303
807050305
1009560488
125125606013.5
150150757519
2001501008024
20020010010034
25020012510041
25025012512553
30030015015076
350350175175103
380380190190122
400400200200136
500500250250210

Nicht-Standard-Größen und kundenspezifische Ausführungen sind auf Anfrage erhältlich.



DD_fender_mount

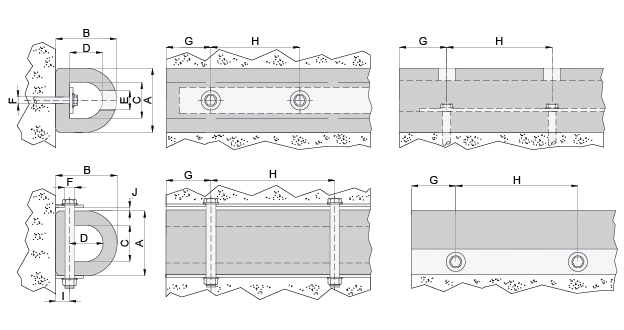

Mounting method and dimensions
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G
H
I (mm)
J (mm)
Flat bar
Bolt size
42272713201070-110150-25015615x3M8
50602030201070-110150-25020815x3M8
80705030301590?130200?30020835 x5M12
100956048301590?130200?300251040 x 5M12
12512560604020110?150250?300251050 x 6M16
15015075754020110?150250?300301260 x 8M16
200150100805025130?180300?400351280 x 10M20
2002001001005025130?180300?400451580 x 10M20
2502001251006030140?200350?450501590 x 12M24
2502501251256030140?200350?450502090 x 12M24
3003001501506030140?200350?4506025110 x 12M24
3503501751757535140?200350?4507025130 x 15M30
3803801901907535140?200350?4508030140 x 15M30
4004002002007535140?200350?4508030150 x 15M30
5005002502509045160?230400?50010030180 x 20M36

General guidelines for mounting. For reference purposes only.
